Sensor brackets
Put the Sensor at the Angle the Project Actually Needs.
Sensor mounts are interface parts: one side must fit the sensor body or PCB, the other must fit the machine, wall or prototype, and the geometry between them determines orientation and field of view.
Projects accepted from all Tunisia. Start remotely with photos, measurements, a file or a link. In-person meetings can be arranged by appointment when useful.
Typical projects
Specific objects and outcomes—not a generic printing menu.
The examples below define the type of problem this page is meant to solve. Final feasibility depends on the actual geometry, use conditions and information supplied.
01Ultrasonic sensor brackets
02PIR sensor wall mounts
03Temperature-probe holders
04Camera-module brackets
05LiDAR / ToF prototype mounts
06Adjustable sensor angle wedges

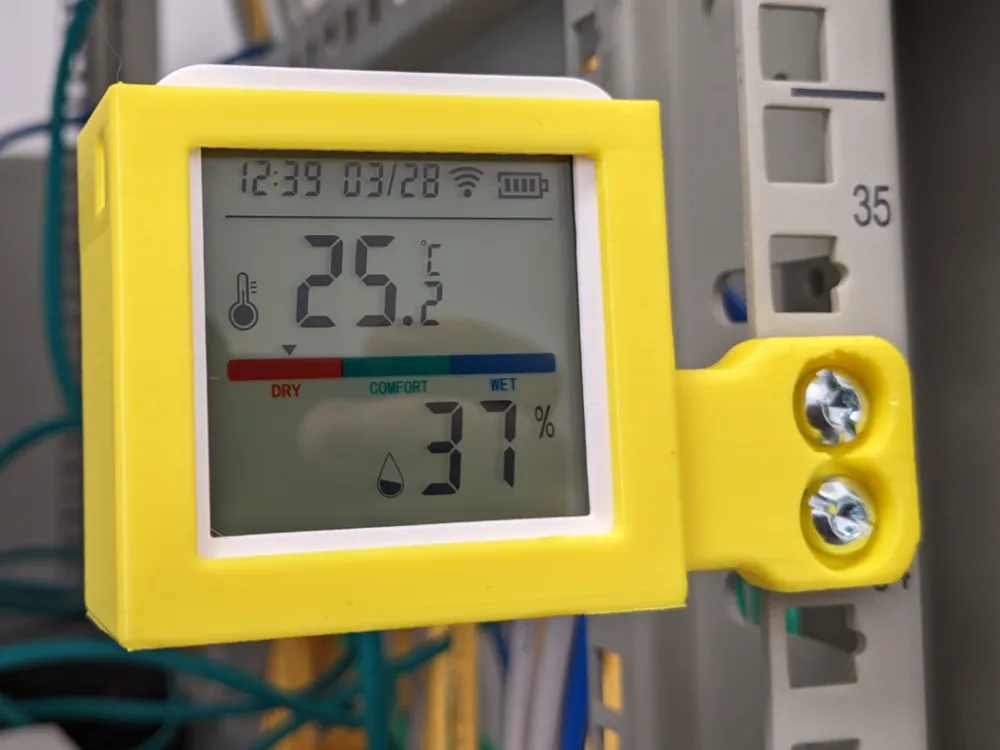

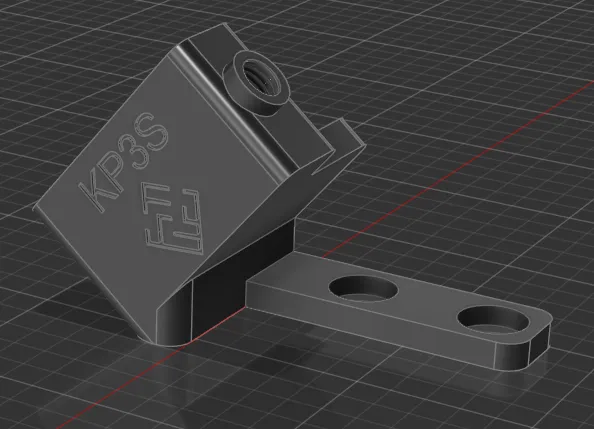

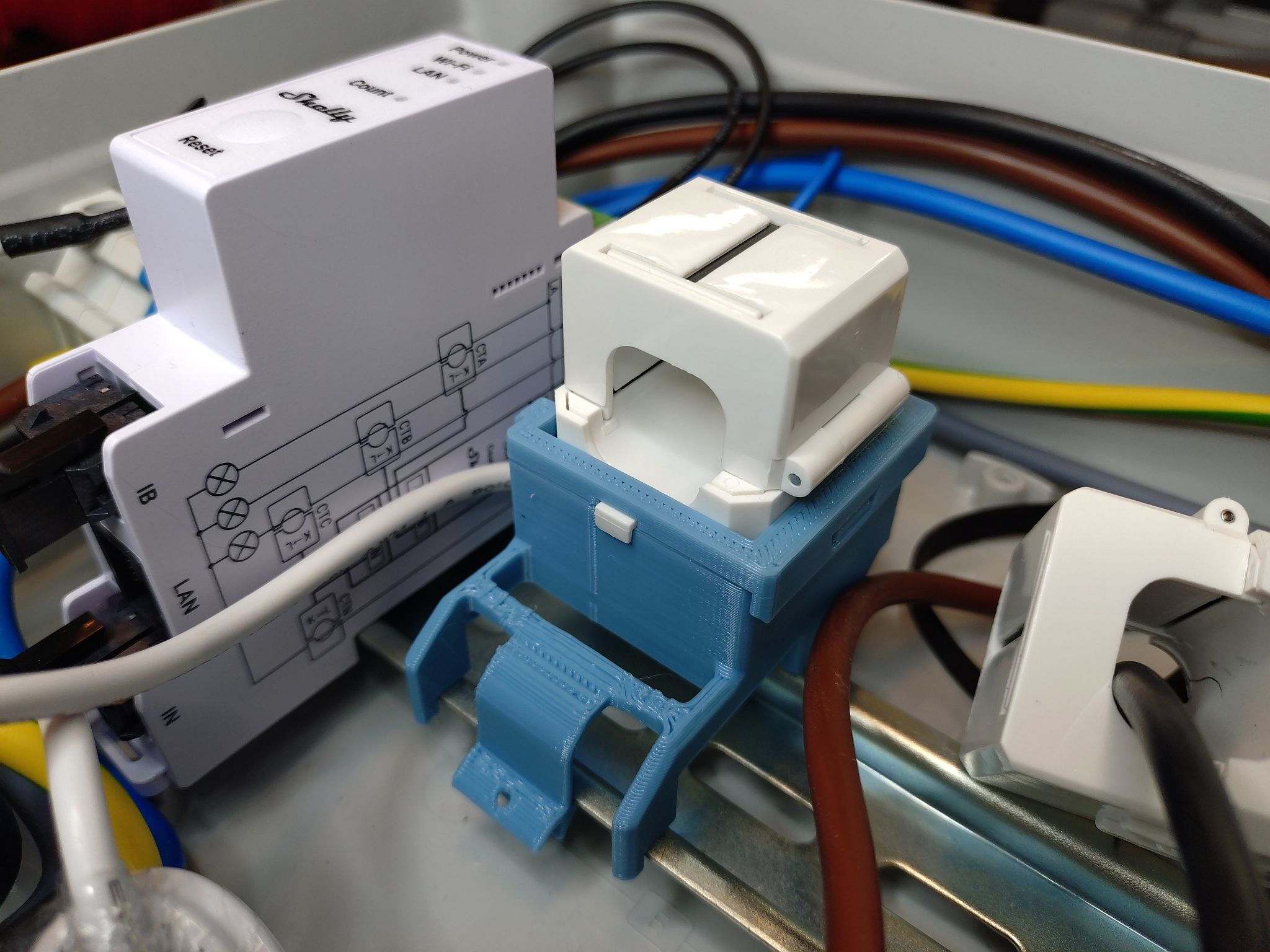

Related 3D models
Real models related to this exact use case.
Use these as references or starting points. Creator and license context remain available where applicable.
Explore the full discovery library ↗
The real customer problem
Why someone searches for this page.
→
The sensor points in the wrong direction.
→
The PCB has mounting holes but the prototype surface does not.
→
A bracket must clear cables or connectors.
→
The sensor needs repeatable repositioning.
→
A custom angle wedge is easier than rebuilding the whole assembly.
Project brief
Send the information that changes the physical result.
A useful request explains fit, dimensions and intended use. Technical manufacturing choices can then be considered in the context of the real object.
01
Sensor model/PCB dimensions
02
Mounting holes
03
Required angle/orientation
04
Target mounting surface
05
Field-of-view clearance
06
Cable exit direction
Suitability note
Not for safety-rated sensing, automotive ADAS, industrial machine-guarding or other safety-critical sensor mounts without formal engineering validation.
Common project names
Different words, same kind of problem.
Customers often describe this project in English or French. These terms help you confirm you are on the right page—not choose technical print settings.
support capteur Tunisiesupport ultrasonic sensor 3Dbracket capteur impression 3D
FAQ
Questions people ask before starting this exact type of project.
Can the angle be adjustable?
Yes, using slots, indexed positions or a simple hinge geometry when appropriate.
Can a PCB mount and sensor window be combined?
Yes, provided connector, field-of-view and service access are mapped first.
Is this suitable for safety sensors?
Safety-rated sensing systems require certified mounting and validation; a general printed bracket should not be assumed suitable.
Related needs
Continue by project type.
Start the real project
Design My Sensor Mount
Use the file if you have it. Otherwise start with photos, measurements, references and the problem the object needs to solve.
